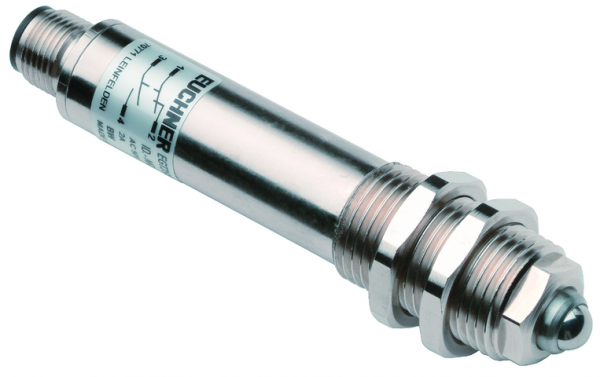

Euchner 052504E | EGT2SEM4 : Single Hole Limit Switch
The EGT2SEM4 is a single hole limit switch designed for reliable operation in automation systems, ensuring accurate position detection.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 50 V |
Rated impulse voltage Uimp: | 2.5 kV |
Short circuit protection according to IEC 60269-1: | 2A gG |
Approach speed: | 0.01 … 10 m/min |
Connection Type: | Plug connector M12(4-pin) |
Number NC contacts: | 1 |
Number of NO contacts: | 1 |
Design: | Thread M18 x 1 |
Actuating element: | Ball plunger(short) |
Actuating force: | 24 N |
Installation Orientation: | any |
Mechanical Life: | 1 x 10? |
Switching principle: | Snap-action switching contact |
Degree of protection: | IP67(Mating connector inserted and screwed tight.) |
Ambient temperature: | -5 … +60 °C |
Item designation: | EGT2SEM4 |
Gross weight: | 0,115kg |
ECLASS: | 27-27-06-01 Position switch (Type 1) |
Repeat Accuracy (absolute): | ±0.01 mm(on axial actuation in the retracted state after approx. 2,000 operating cycles) |
Product Number | Variant Description |
---|---|
EGT2SEM4 : Single Hole Limit Switch | EGT2SEM5 : Single Hole Limit Switch |
