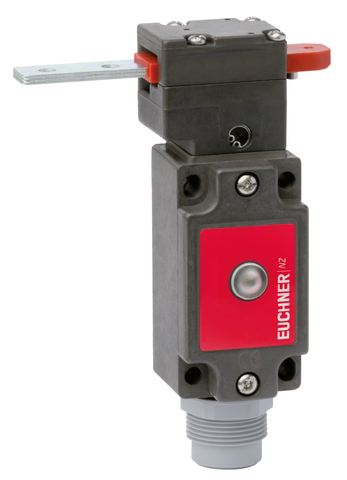

Euchner 045801E | NZ2VZ-528EL060 : Safety Switch
The NZ2VZ-528EL060 is a robust safety switch designed to ensure the safe operation of machinery by preventing accidental activation.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 250 V |
Rated impulse voltage Uimp: | 2.5 kV |
Short circuit protection according to IEC 60269-1: | 4A gG(> 70 °C => 2A gG) |
thermal rated current Ith: | 4 A(>70 °C =>2 A) |
Approach speed: | max. 20 m/min |
Actuating force: | 35 N |
Installation Orientation: | any |
Mechanical Life: | 2 x 10? |
Switching principle: | Slow-action switching contact |
Degree of protection: | IP65 |
Ambient temperature: | -25 … +80 °C |
Item designation: | NZ2VZ-528EL060 |
Gross weight: | 0,385kg |
ECLASS: | 27-27-26-02 Safety switch with separate actuator (Type 2) |
Overtravel: | 16 mm |
Switching voltage: | 12 V |
Approach direction: | A |
Number of door position NO contacts: | 1 |
Number of door position positively driven contacts: | 1 |
Extraction Force: | 35 N |
Actuation frequency: | max. 1200 1/h |
Insertion Depth: | 52 mm |
Retention Force: | 8 N |
