| Rated insulation voltage Ui: |
250 V |
| Rated impulse voltage Uimp: |
2.5 kV |
| Short circuit protection according to IEC 60269-1: |
T10/F20 |
| Connection Type: |
Screw terminal |
| Mechanical Life: |
1 x 10? |
| Switching principle: |
Changeover contact C, IEC 947-5-1(Snap-action contact element, design ES517A) |
| Ambient temperature: |
-25 … +65 °C |

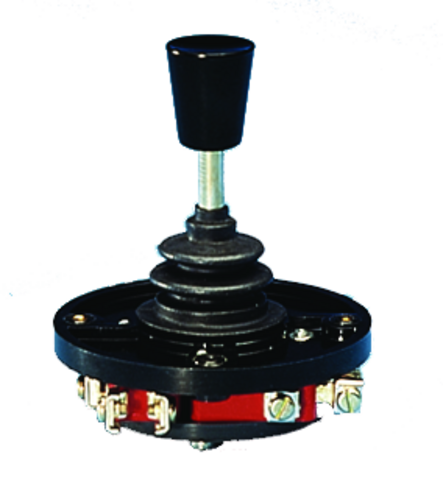

| Item designation: |
KFS1-8RZ |
| Gross weight: |
0,201kg |
| ECLASS: |
27-37-14-04 Control switch, joystick |
| Additional feature: |
All-round actuation |
| Switching voltage: |
min. 12 V |
| Number of monitoring contacts: |
8 + 1(8 directions and Z contact) |
| Actuating directions: |
8(Switch) |
| Mounting cut-out: |
D22 (EN IEC 60947-5-1) |
| Center-position Switch: |
1 changeover contact(NO contact closed, NC contact open in neutral position (not actuated)) |
