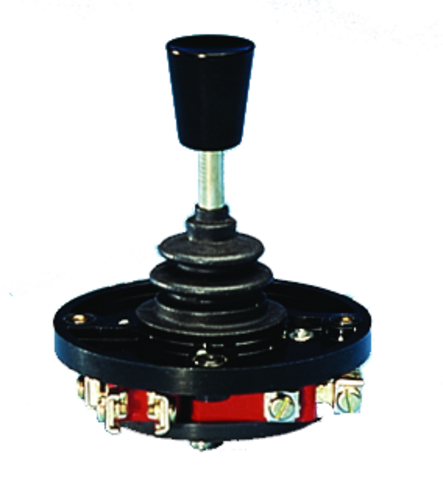

Euchner 029471E | KFS1234RZ : Joystick
$911.11
Explore the Euchner 029471E | KFS1234RZ : Joystick. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 029471E |
| Connection Type: | Screw terminal |
| Storage temperature: | -25 … 70 °C |
| Ambient temperature: | -25 … 65 °C |
| Order Number: | 029471 |
| Item designation: | KFS1234RZ |
| Gross weight: | 0,2kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-37-14-04 Control switch, joystick |
| Mechanical Life: | 1 x 10? |
| Additional feature: | All-round actuation |
| Rated insulation voltage Ui: | 250 V |
| Rated impulse voltage Uimp: | 2.5 kV |
| Fuse: | T10/F20 |
| Switching voltage: | min. 12 V |
| Switching principle: | Changeover contact C, IEC 947-5-1(Snap-action contact element, design ES517A) |
| Mounting cut-out: | D22 (EN IEC 60947-5-1) |
| Number of monitoring contacts: | 4 + 1(4 directions and Z contact) |
| Actuating directions: | 4(Switch) |
| Center-position Switch: | 1 changeover contact(NO contact closed, NC contact open in neutral position (not actuated)) |
