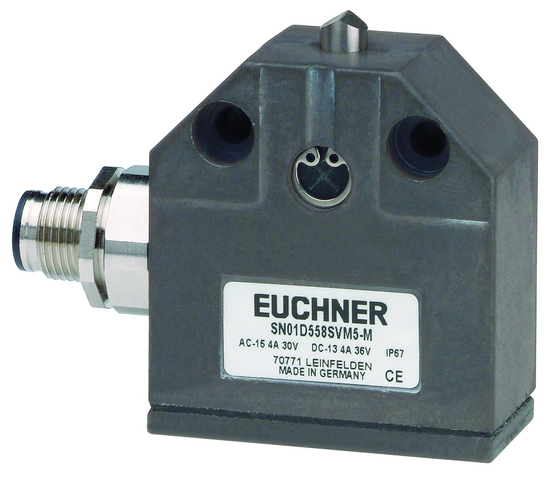

Euchner 017555E | ES558 : Snap Switch
The ES558 Snap Switch is designed for reliable operation in various applications, providing a quick and easy way to control circuits.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 50 V |
Rated impulse voltage Uimp: | 1.5 kV |
Short circuit protection according to IEC 60269-1: | 4A gG |
thermal rated current Ith: | 4 A |
Approach speed: | 0.01 … 8 m/min |
Actuating force: | 15 … 20 N |
Installation Orientation: | any |
Mechanical Life: | 10 x 10? |
Switching principle: | Snap-action switching contact |
Degree of protection: | IP67 |
Ambient temperature: | -5 … +80 °C |
Item designation: | SN01K558SVM5-M |
Gross weight: | 0,122kg |
ECLASS: | 27-27-06-01 Position switch (Type 1) |
Number of door position NO contacts: | 1 |
Number of door position NC contacts: | 1 |
Product Number | Variant Description |
---|---|
ES558 : Snap Switch | (No others) |
