| Connection Cross Section: |
0.34 … 1.5 mm² |
| Rated insulation voltage Ui: |
250 V |
| Rated impulse voltage Uimp: |
2.5 kV |
| Short circuit protection according to IEC 60269-1: |
8A gG |
| thermal rated current Ith: |
8 A |
| Approach speed: |
0.01 … 20 m/min |
| Connection Type: |
2 x M20 x 1.5 |
| Number NC contacts: |
2 |
| Number of switching elements: |
3 |
| Number of NO contacts: |
2 |
| Number of positively driven contacts: |
1 |
| Design: |
upright |
| Actuating element: |
Chisel plunger |
| Actuating force: |
min. 20 N |
| Installation Orientation: |
any |
| Mechanical Life: |
30 x 10? |
| Operating point accuracy: |
± 0,002(The reproducible operating point accuracy refers to the axial travel of the plunger after the switching element ES 502 E has been run-in with approx. 2,000 operating cycles.) |
| Degree of protection: |
IP67 |
| Plunger spacing: |
12 mm |
| Ambient temperature: |
-5 … +80 °C |
| B10D: |
20 x 10? |

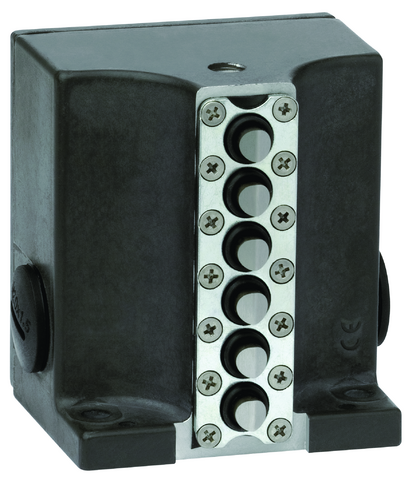

| Item designation: |
SN03D12-1508AM-M |
| Gross weight: |
0,384kg |
| ECLASS: |
27-27-06-02 Multi-position switch |
