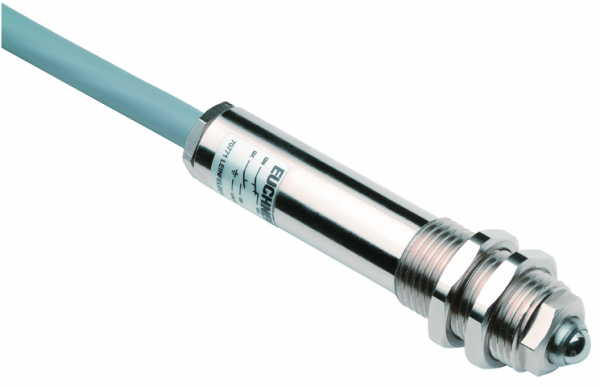

Euchner 001865E | EGT2-5000 : Single Hole Limit Switch

The EGT2-5000 is a reliable single hole limit switch that ensures accurate detection of movement.

Request a quote

    Attribute Value
    Connection Cross Section: 0.75 mm²
    Rated insulation voltage Ui: 250 V
    Rated impulse voltage Uimp: 2.5 kV
    Short circuit protection according to IEC 60269-1: 2A gG
    Approach speed: 0.01 … 10 m/min
    Connection Type: PUR cable(five-core)
    Number NC contacts: 1
    Number of NO contacts: 1
    Design: Thread M18 x 1
    Actuating element: Ball plunger(short)
    Actuating force: 24 N
    Installation Orientation: any
    Mechanical Life: 1 x 10?
    Switching principle: Snap-action switching contact
    Degree of protection: IP67
    Ambient temperature: -5 … +60 °C
    Item designation: EGT2-5000
    Gross weight: 0,535kg
    ECLASS: 27-27-06-01 Position switch (Type 1)
    Cable length: 5 m
    Repeat Accuracy (absolute): ±0.01 mm(on axial actuation in the retracted state after approx. 2,000 operating cycles)
    Product Number Variant Description
    EGT2-5000 : Single Hole Limit Switch (No others)
