| Connection Cross Section: |
0.14 … 2.5 mm² |
| Switching current: |
1 … 10 … 50 mA in event of short circuit the output is shut down(Function description of the overload protection in the Electronic-Key adapter manual, order No. 110845) |
| Connection Type: |
plug-in screw terminal |
| Ambient temperature: |
0 … +55 °C |
| Item designation: |

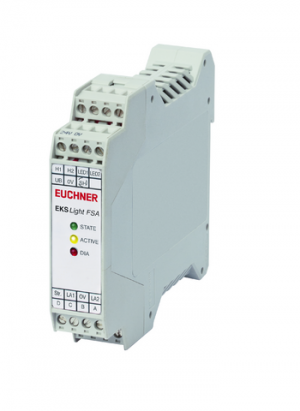

EKS-A-APRA-G08 |
| Gross weight: |
0,211kg |
| ECLASS: |
27-39-90-90 Property, access monitor (other, unspecified) |
| Mounting type: |
TH 35 mounting rail (EN IEC 60715) |
| Operating voltage DC: |
9 … 24 … 28 V DC(For use and use in accordance with UL requirements, a power supply with the feature ‘for use in class 2 circuits’ must be used.) |
| Current consumption: |
max. 70 mA |
| Switching voltage: |
0 … 24 … 30 V |
| Number of read heads: |
max. 1 |
| Date Interface: |
4-bit parallel plus strobe, binary coded via High/Low level |
