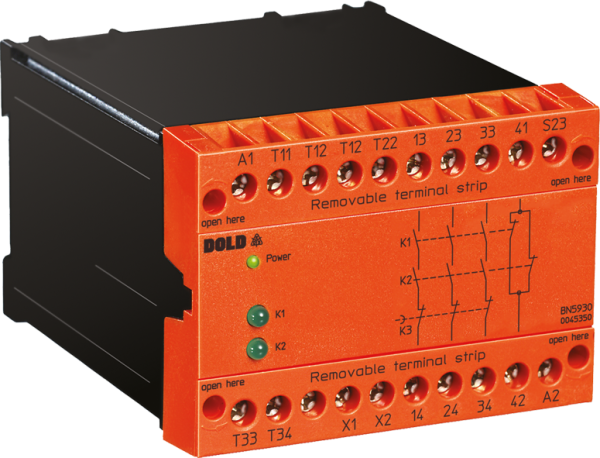

Dold Module BN5930.48/204 AC110V 50/60HZ/ DC60V 44713

DOLD BN5930.48/204: High-efficiency AC110V/DC60V electrical product for reliable power distribution.

Request a quote

    Attribute Value
    Width: 100 mm
    Nominal voltage: AC, DC
    Thermal current Ith max.: 100000
    Connection: Pluggable screw terminals
    Output contacts max.: 1 NC contact, 3 NO contacts
    Type: BN 5930.48/204
    Cat. / PL Acc. To EN ISO 13849-1: 4/e
    SIL Acc. To IEC/EN 62061: 3
    1- / 2-channel: 1, 2
    Cross Fault Detection: Yes
    Suited as safety gate monitor: Yes
    Product Number Variant Description
    57145 BN5930.48/204 AC120V 50/60HZ
    55781 BN5930.48/204 AC115V 50/60HZ/ DC60V
    45693 BN5930.48/203 AC240V 50/60HZ
    43384 BN5930.48/203 AC110V 50/60HZ/ DC60V
    41998 BN5930.48/203 AC230V 50/60HZ/DC110V
    54491 BN5930.48/204 DC48V
    55884 BN5930.48/204 AC48V 50/60HZ
    57559 BN5930.48/204 DC220V
    47617 BN5930.48/204 DC24V
    45350 BN5930.48/204 AC230V 50/60HZ/DC110V
    56657 BN5930.48/203 AC120V 50/60HZ
