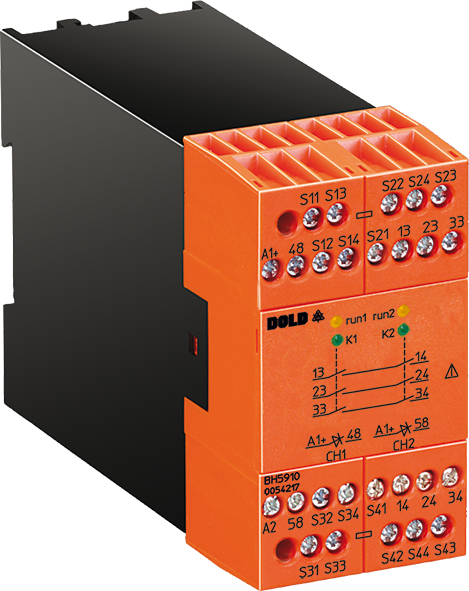

Dold Module BH5910.22/00MF2/61 DC24V 64605
DOLD BH5910.22/00MF2/61 DC24V – Reliable, high-performance electrical control relay.
Request a quote
Attribute | Value |
---|---|
Width: | 45 mm |
Nominal voltage: | DC |
Thermal current Ith max.: | 050000 |
Connection: | Pluggable screw terminals |
Type: | BH 5910 |
Approvals: | UL |
Cat. / PL Acc. To EN ISO 13849-1: | 4/e |
SIL Acc. To IEC/EN 62061: | 3 |
1- / 2-channel: | 1, 2 |
Cross Fault Detection: | Yes |
Application: | Emergency stop, Light barrier, Safety gate, Two-hand |
Safe Output Contacts, Redundant NO Contacts: | 3 |
Auxiliary contacts: | Yes |
Feedback for external monitoring: | Yes |
