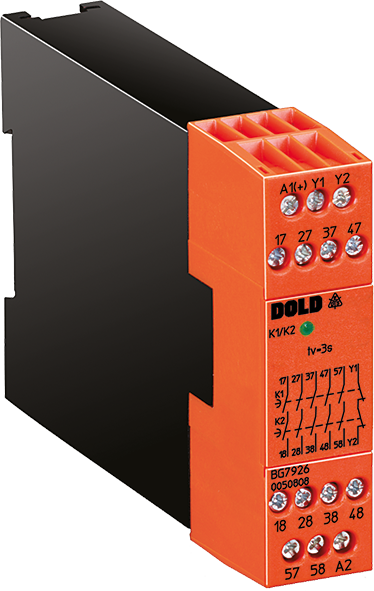

Dold Module BG7926.54 AC/DC24V Tv=1S 55852
DOLD BG7926.54 AC/DC24V Tv=1S – High-Performance Electrical Contact Relay.
| Attribute | Value |
|---|---|
| Type: | BG 7926 |
| Width: | 22,5 mm |
| Cat. / PL Acc. To EN ISO 13849-1: | 2/d |
| SIL Acc. To IEC/EN 62061: | 2 |
| Nominal voltage: | AC/DC |
| Thermal current Ith max.: | 050000 |
| 1- / 2-channel: | 1 |
| Approvals: | UL-Recognized |
| Output contacts max.: | 1 NC contact, 5 NO contacts |
| Connection: | Pluggable screw terminals |
| Time delay max.: | 3 s |
| Product Number | Variant Description |
|---|---|
| 56617 | BG7926.54 AC/DC24V Tv=2S |
| 50806 | BG7926.54 AC/DC24V TV=3S |
