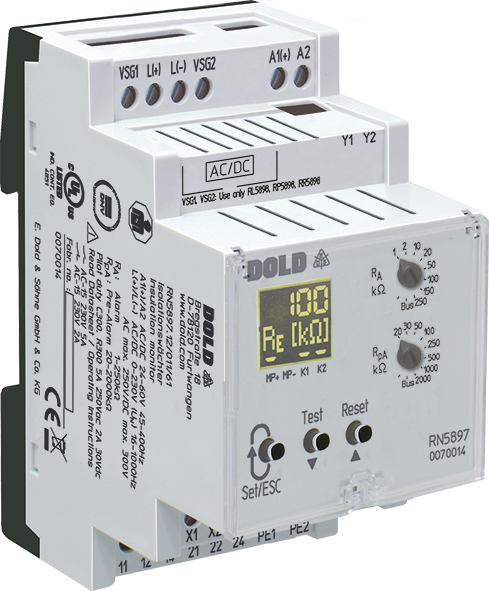

DOLD 0070014: RN5897.12/011/61 AC/DC24-60V Insulation monitor
The insulation monitor RN 5897/011 of the VARIMETER IMD family is a solution for optimal insulation monitoring of modern IT systems. The device can be used in the most flexible way for AC, DC and AC/DC systems even with large leakage capacity to earth (PE). The adjustment of the setting values is simple and user friendly done on 2 rotary switches on the front of the device. Via display and LEDs the measured value, device parameters and device status are indicated easy to read. With a sealable transparent cover the device is protectet against manipulation. The RN 5987/011 has an additonal Modbus RTU-interface. All measured values, device states and parameters can be read out, set and parameterized. All functions available on the device can also be operated via Modbus.
| Attribute | Value |
|---|---|
| Width: | 52,5 mm |
| Enclosure design: | Distribution board |
| Type: | RN 5897/011 |
| Auxiliary voltage: | AC/DC |
| Approvals: | UL, DNV |
| Bus Interface: | Modbus RTU |
| Nominal voltage IT system: | AC 0 – 230, AC 0 – 1000 (Coupling device), DC 0 – 230, DC 0 – 1500 (Coupling device) V |
| Response Value: | 1 – 2000 kΩ |
| IMD Type: | AC, DC, AC/DC |
| Response Value Type: | Adjustable |
| Earth Fault Indicator: | Yes |
