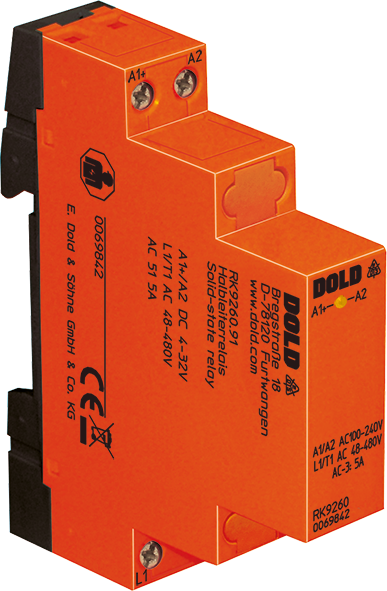

DOLD 0069840: RK9260.91 AC48-480V AC5A Solid-state relay for resistive load
The solid-state relay RK 9260 is designed with 2 anti-parallel connected thyristors switching at zero crossing for resistive loads (e.g. heating systems). When connecting the control voltage the output of the solidstate relay is activated at the next zero crossing of the sinusoidal voltage. When disconnecting the control voltage the output is switched off at the next zero crossing of the load current. The LED shows the state of the control input.
| Attribute | Value |
|---|---|
| Type: | RK 9260 |
| Widths: | 17,5 mm |
| Number of poles: | 1-pole |
| Load voltage up to: | AC 480 V |
| Load Current Up To: | 5 A |
| On/off Input Control: | AC, DC |
