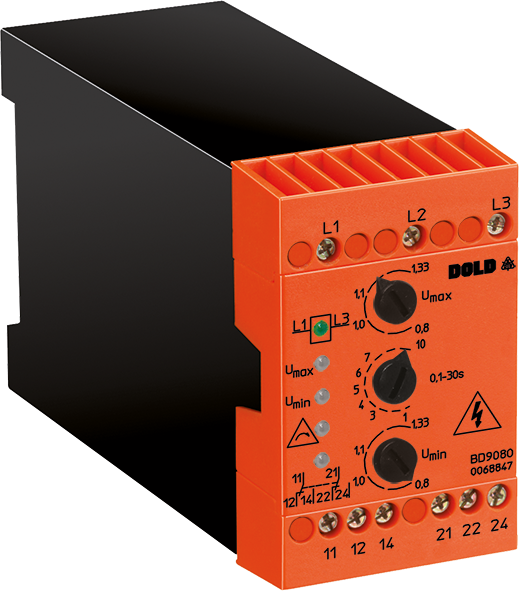

DOLD 0069432: BD9080.12/004 3AC750V ,1-30s Ta=30s Phase monitor
The Phase monitor BD 9080 of the VARIMETER PRO series monitors over and undervoltage, asymmetry, power failure as well as wrong phase sequence at three-phase networks . The measurement is very simple and can be carried out without much wiring effort, as no separate auxiliary voltage is required. Early detection of impending failtures and preventive maintenance prevent costly damage and as a user you benefit from the operational safety and high availability of your system.
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Enclosure design: | Switch cabinet |
| Type: | BD 9080/004 |
| 1- / 3-phase: | 3 |
| Auxiliary voltage: | Without |
| Output Contacts: | 2 C/O contacts |
| Measuring range max.: | 750 V |
| Standard measuring range: | 3 AC 400 V |
| Operate Delay: | Yes |
