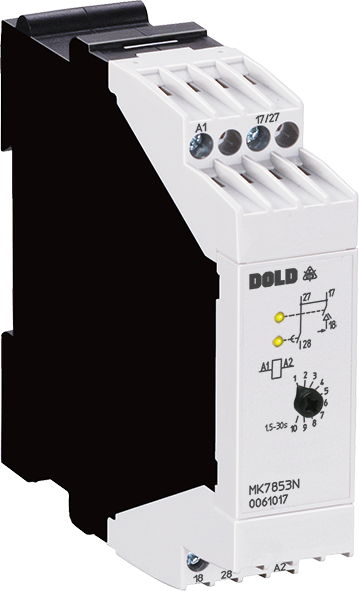

DOLD 0068826: MK7853N AC220-240V 60S 35MS Star-Delta-Timer
The MK 7853N is a static star-delta-timer with 2 separate output relays. As soon as the operating voltage is applied, relay 1 will be energized and falls back after time delay. After elapse of the contact changeover time, the second relay switches on and remains in active position, as long as the star-delta-timer is energized.
| Attribute | Value |
|---|---|
| Width: | 22,5 mm |
| Enclosure design: | Switch cabinet |
| Type: | MK 7853N |
| Output Contacts: | 1 C/O contact, 1 NO contact |
| Time function(s): | Star-Delta-Timer |
| Nominal voltage: | AC, AC/DC |
| Time range: | 0,5 s – 100 s |
