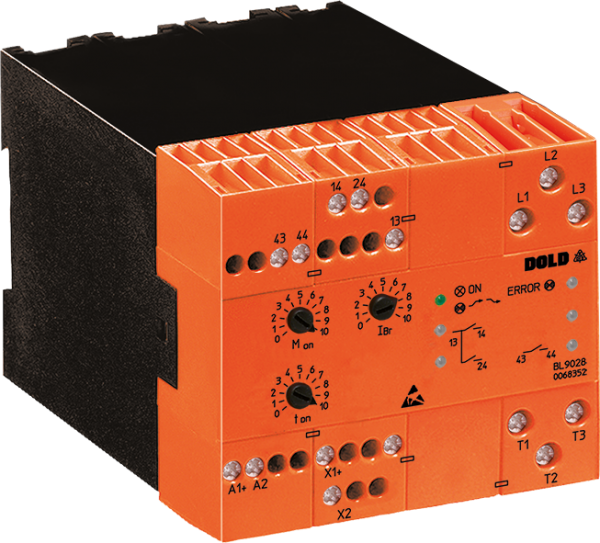

DOLD 0068352: BL9028.03 3AC200-480V UH=DC24V 11kW Softstarter with braking function
Softstarters are electronic devices designed to enable 1-phase or 3-phase induction motors to start smoothly. By means of internal current monitoring we realise different protective functions, when stalling the motor or during heavy duty starting. The semiconductors are bridged after softstart by relay contacts. This reduces power dissipation and heating. The device parameters are adjusted using potentiometers. LEDs indicate the status of the device.
| Attribute | Value |
|---|---|
| Type: | BL 9028 |
| Signalling output: | Yes |
| Auxiliary voltage required: | Yes |
| Widths: | 112,5 mm |
| Load voltage up to: | 3AC 480 V |
| For three-phase motors, 400 V up to: | 15 kW |
| Extra Functions: | Temperature monitoring, Mains monitoring |
