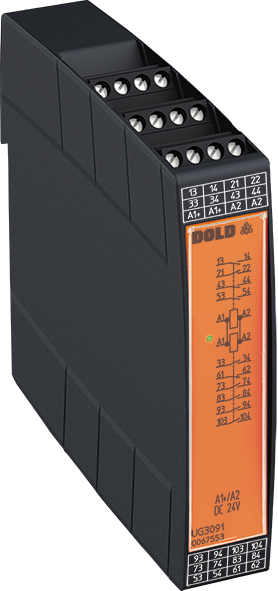

DOLD 0068129: UG3091.67PS DC110V Interface module
The interface module UG 3091 provides 10 contacts in 2 relays with forcibly guided contacts. It is suitable for safe electrical separation of control and power levels as well as for contact multiplication and reinforcement of safety modules.
| Attribute | Value |
|---|---|
| Width: | 22,5 mm |
| Enclosure design: | Switch cabinet |
| Type: | UG 3091 |
| Output contacts max.: | 2 NC contacts, 8 NO contacts |
| Nominal voltage: | DC |
| Thermal current Ith max.: | 4 A |
| Connection: | Pluggable screw terminals |
