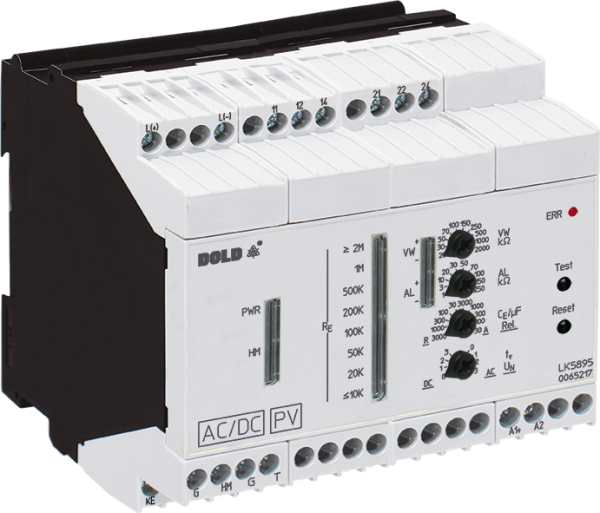

DOLD 0067983: LK5895.12/010/61 DC24V 1k-15k Insulation monitor
The insulation monitor LK 5895 of the VARIMETER IMD family is a solution for optimal insulation monitoring of modern IT systems. The device can be used in the most flexible way for AC, DC and AC/DC systems even with large leakage capacity to earth (PE). The adjustment of the setting values is simple and user friendly done on 2 rotary switches on the front of the device. Via LEDs the measured value, device parameters and device status are indicated easy to read.
| Attribute | Value |
|---|---|
| Width: | 90 mm |
| Enclosure design: | Switch cabinet |
| Type: | LK 5895 |
| Auxiliary voltage: | DC |
| Approvals: | UL |
| Classification: | For photovoltaic systems |
| Nominal voltage IT system: | AC 0 – 1000, DC 0 – 1000 V |
| Response Value: | 1 – 250 kΩ |
| IMD Type: | AC, DC, AC/DC |
| Response Value Type: | Adjustable |
| Earth Fault Indicator: | Yes |
