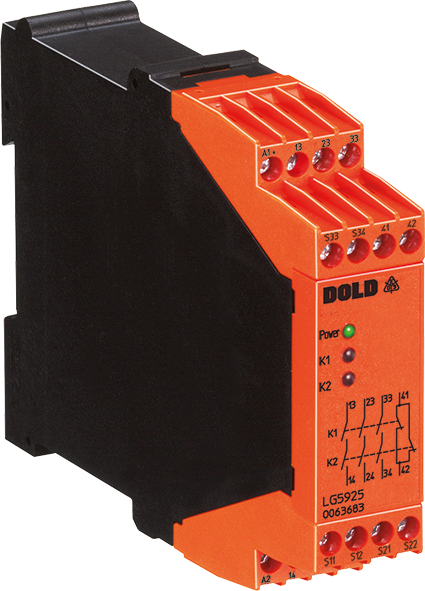

DOLD 0067945: LG5925.04/920/61 DC24V Safety module for safety switches
| Attribute | Value |
|---|---|
| Width: | 22,5 mm |
| Type: | LG 5925/920 |
| Cat. / PL Acc. To EN ISO 13849-1: | 4/e |
| SIL Acc. To IEC/EN 62061: | 3 |
| Output contacts max.: | 4 NO contacts |
| Nominal voltage: | DC |
| Approvals: | UL |
| Thermal current Ith max.: | 8 A |
| 1- / 2-channel: | 1, 2 |
| Connection: | Screw terminals, Pluggable screw terminals, Pluggable cage clamp terminals |
| Cross Fault Detection: | Yes |
