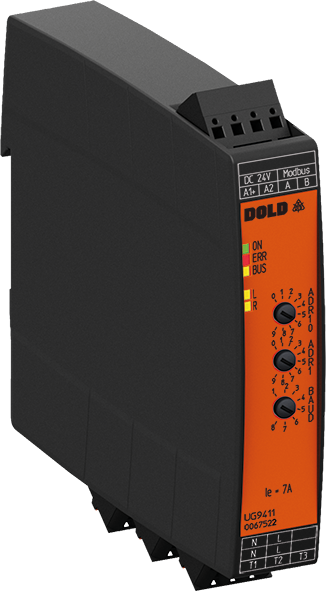

DOLD 0067523: UG9411PM AC230V 50/60HZ 7A 0-10S Smart motorstarter, for Modbus
The smart motorstarter UG 9411 can be used for softstart, softstop, reversing and protecting 1 phase asynchronous motors. By measuring the line current a thermal model is used to calculate the motor temperature, and in the case of overtemperature the motor is disconnected. In addition also a thermo switch can be used. The reversing is done via relays. The relays are switched without current flow, this provides long service life.
| Attribute | Value |
|---|---|
| Width: | 22,5 mm |
| Type: | UG 9411 |
| 1- / 3-phase: | 1 |
| Auxiliary voltage: | DC 24 V |
| Temperature monitoring: | Yes |
| Bus Interface: | Modbus RTU |
| Load voltage up to: | AC 230 V |
| Load Current Up To: | 7 A |
