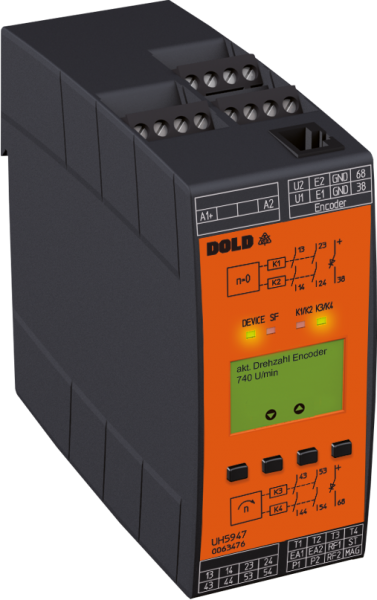

DOLD 0067498: UH5947.04PT/001/61 DC24V Speed and standstill monitor
The speed monitor UH 5947 provides safe monitoring of motors and rotating equipment. It is used in machines and plants where machine movements or moving parts can be a danger to men and machine. Using the front side display the parameters can be easily and comfortably adapted to the individual application or changed when necessary.
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Type: | UH 5947 |
| Cat. / PL Acc. To EN ISO 13849-1: | 4/e |
| SIL Acc. To IEC/EN 62061: | 3 |
| Nominal voltage: | DC, AC/DC |
| Approvals: | UL |
| Classification: | For initiators and encoders |
| Thermal current Ith max.: | 5 A |
| 1- / 2-channel: | 2 |
| Forcibly guided output contacts max.: | 2 x 2 NO contacts |
| Connection: | Pluggable screw terminals, Pluggable cage clamp terminals, Pluggable cage clamp terminals 2-wire |
| Indicator Contacts: | 2 Semiconductor monitoring outputs |
