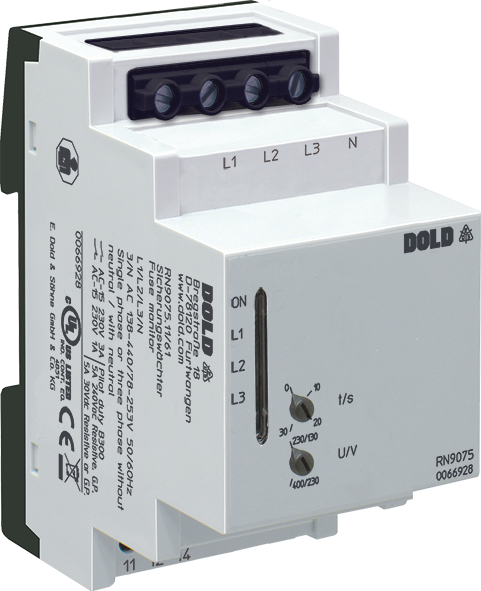

DOLD 0066928: RN9075.11/61 3/N AC138-440/78-253V Fuse Monitor
The fuse monitors RL 9075 and RN 9075 of the varimeter series monitor up to 3 fuses. The measurement is very simple and without extensive wiring, as no separate auxiliary supply is necessary. The fast detection of a defective fuse protects against expensive damages and the user has the benefit of high operational performance and availability of the plant.
| Attribute | Value |
|---|---|
| Width: | 52,5 mm |
| Enclosure design: | Distribution board |
| Type: | RN 9075 |
| 1- / 3-phase: | 1, 3 |
| Output Contacts: | 1 C/O contact |
| Measuring range max.: | 3 AC 400 V |
| Standard measuring range: | 3/N AC 400/230 V |
| Approvals: | UL |
