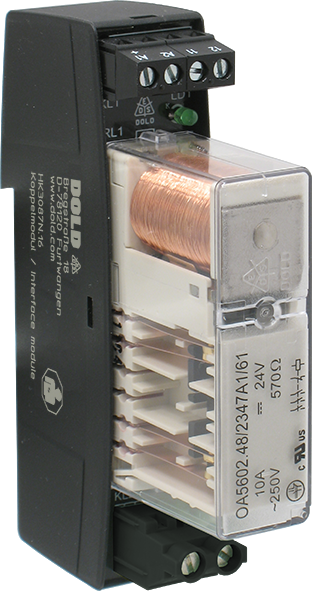

DOLD 0066764: HK3087N.16 DC24V Interface module
The interface module HK 3087N has forcibly guided contacts, allowing it to be used for reliable decoupling of the control and power levels by monitoring the switching status via the NC contact. The interface module is characterized by a high insulation resistance betwenn the NC and NO contacts and is designed for high thermal currents.
| Attribute | Value |
|---|---|
| Width: | 22,5 mm |
| Enclosure design: | Switch cabinet |
| Type: | HK 3087N |
| Output contacts max.: | 1 NO contact, 1 NC contact |
| Nominal voltage: | DC |
| Thermal current Ith max.: | 25 A |
| Connection: | Screw terminals |
