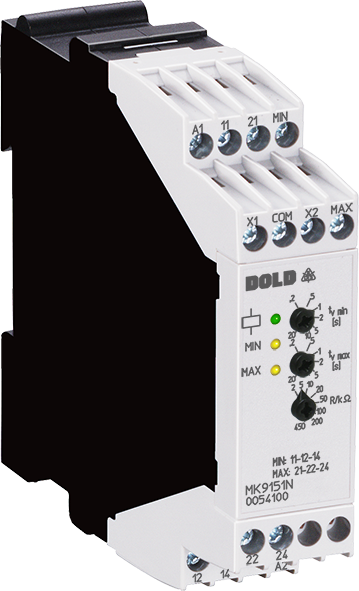

DOLD 0065760: MK9151N.12/001 2-450K AC400V ,2-20S Level Sensing Relay
The MK 9151N level sensing relay of the VARIMETER series have 3 electrode connections that can be used for 2-point and 1-point level control. The response value can be set using a rotary switch, as can the response and release delay. The device can be programmed for the open and closed-circuit operation.
| Attribute | Value |
|---|---|
| Width: | 22,5 mm |
| Enclosure design: | Distribution board |
| Type: | MK 9151N |
| Auxiliary voltage: | AC, DC |
| Output Contacts: | 2 x 1 C/O contacts |
| Measuring range max.: | 450 kΩ |
| Operate Delay: | Yes |
| Classification: | Füllstandsüberwachung |
