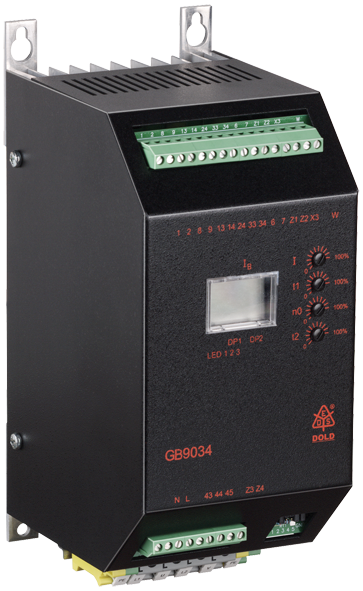

DOLD 0065690: GB9034/1111 400A AC50/60HZ 200-690V Motor brake relay
The electronic motor brake relay GB 9034 from the MINISTOP series enable wear-free braking of three-phase and alternating current asynchronous motors. The braking devices are used for drives that must be reliably braked for safety and functional reasons. Depending on the device version and the user‘s specification, the braking current switches off after a set braking time or via the integrated standstill detection after the motor has come to a standstill. With standstill-dependent braking, a potential-free signal contact signals if the motor has not come to a standstill within the maximum braking time.
| Attribute | Value |
|---|---|
| Width: | 110 mm |
| Type: | GB 9034 |
| Braking current adjustable up to max.: | 600 A |
| Braking time adjustable up to max.: | 320 s |
| External Brake Contactor Required: | Yes |
| Signalling output: | Yes |
| Temperature monitoring: | Yes |
| Automatic standstill monitoring: | Yes |
