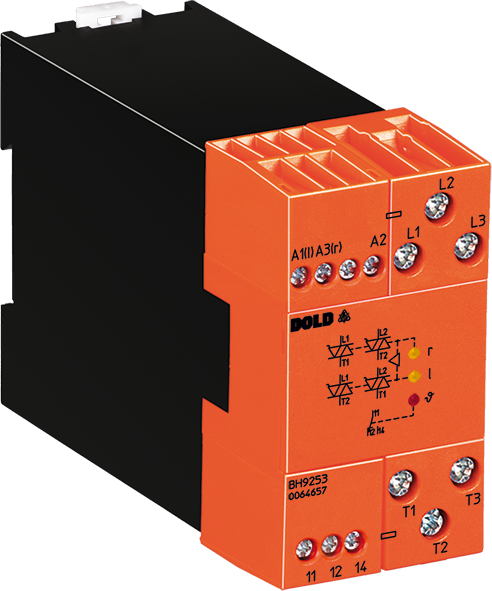

DOLD 0064656: BH9253.11/61 AC220-240V 20A 100MS Reversing contactor
The reversing contactor BH 9253 is used to reverse the direction of 3-phase asynchronuos motors by switching 2 phases. An electrical interlocking disables the control of both directions at the same time. The reversing contactor has a short on and off delay time. When reversing the phases a switchover delay is guaranteed. To protect the power semiconductors the unit incorporates temperature monitoring. When overtemperature is detected the power semiconductors swith off and an output relay as well as a red LED is activated. This state is stored. When the temperature is back to normal the semiconductors can be activated again by switching off and on the control voltage.
| Attribute | Value |
|---|---|
| Enclosure design: | Switch cabinet |
| Type: | BH 9253 |
| Approvals: | UL |
| Signalling output: | Yes |
| Temperature monitoring: | Yes |
| Widths: | 45, 67,5, 112,5 mm |
| Number of poles: | 3-pole |
| Load voltage up to: | 3AC 24 – 480 V |
| Load Current Up To: | 20 A |
| On/off Input Control: | AC, AC/DC |
