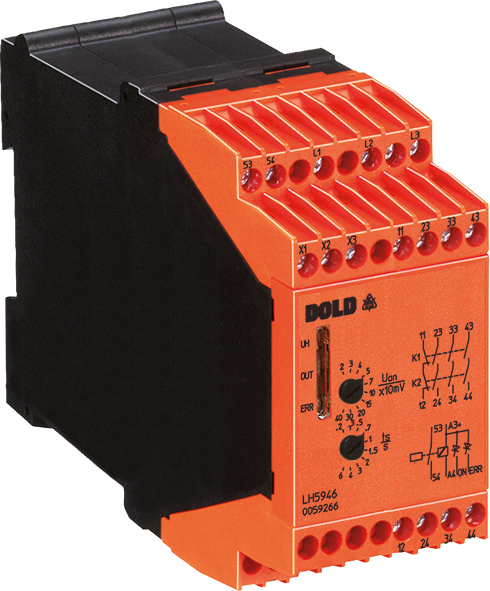

DOLD 0064469: LH5946.48PC/61 20-400mV UH AC115V Standstill monitor
The safe sensorless LH 5946 standstill monitor is suitable for detects the standstill of 3-phase and 1-phase electric motors independent of the direction of rotation. This means sensors such as encoders or proximity switches are not required. The standstill monitor measures the induced voltage of the coasting motor. If the induced voltage approaches 0, this means motor standstill for the device and the output relay is activated.
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Type: | LH 5946 |
| Cat. / PL Acc. To EN ISO 13849-1: | 4/e |
| SIL Acc. To IEC/EN 62061: | 3 |
| Nominal voltage: | AC, DC |
| Approvals: | UL |
| Classification: | Sensorless |
| Thermal current Ith max.: | 5 A |
| 1- / 2-channel: | 2 |
| Forcibly guided output contacts max.: | 1 NC contact, 3 NO contacts |
| Connection: | Screw terminals, Pluggable screw terminals, Pluggable cage clamp terminals |
| Indicator Contacts: | 2 Semiconductor monitoring outputs, 1 NO contact |
| Measuring motor voltage max.: | 690 V |
