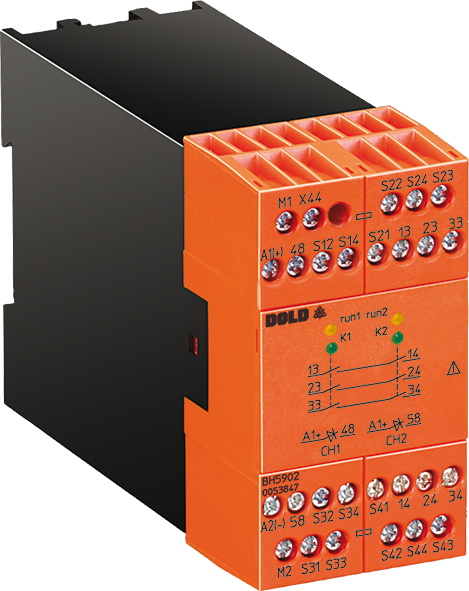

DOLD 0063754: BH5902.22/01MF2/61 DC24V Light curtain controller with selectable operating modes
Protection of men and machines e.g. presses and conveyors
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Type: | BH 5902 |
| Cat. / PL Acc. To EN ISO 13849-1: | 4/e |
| SIL Acc. To IEC/EN 62061: | 3 |
| Output contacts max.: | 3 NO contacts |
| Nominal voltage: | DC |
| Approvals: | TÜV, UL |
| Thermal current Ith max.: | 5 A |
| 1- / 2-channel: | 1, 2 |
| Cross Fault Detection: | Yes |
