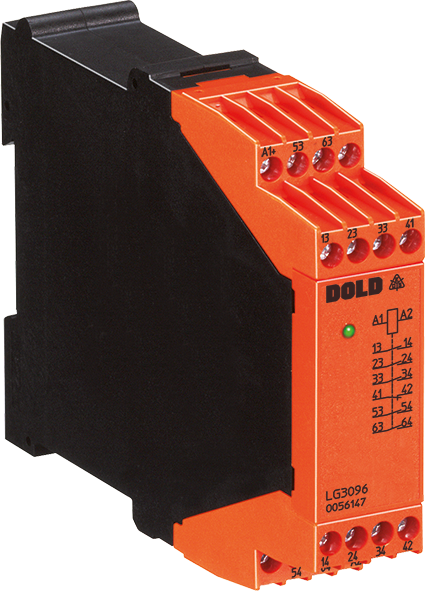

DOLD 0062811: LG3096.60PC/304 AC230-240V Interface module
The coupling modules LG 3096 and MK 3096N with positively driven contacts are suitable for decoupling control and power levels as well as for contact multiplication also of safety switchgear. Monitoring is possible via a positively driven NC contact.
| Attribute | Value |
|---|---|
| Width: | 22,5 mm |
| Enclosure design: | Switch cabinet |
| Type: | LG 3096 |
| Output contacts max.: | 1 NC contact, 5 NO contacts |
| Nominal voltage: | AC, DC |
| Thermal current Ith max.: | 5 A |
| Connection: | Screw terminals, Pluggable screw terminals, Pluggable cage clamp terminals |
