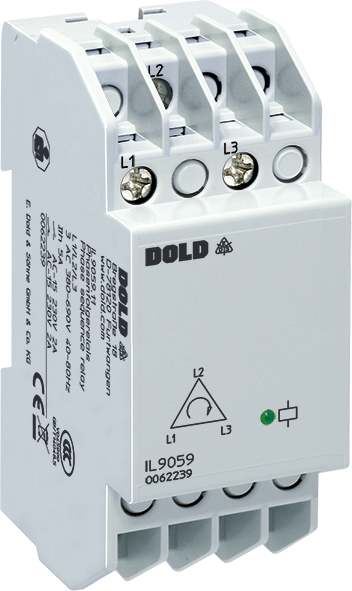

DOLD 0062239: IL9059.11 3AC380-690V 40-80Hz Phase Sequence Module
The phase sequence relays IL and SL 9059 of the VARIMETER series monitor compliance with the correct phase sequence L1 – L2 – L3 and the presence of the three phase voltages in a three-phase system.
| Attribute | Value |
|---|---|
| Width: | 35 mm |
| Enclosure design: | Distribution board |
| Type: | IL 9059 |
| 1- / 3-phase: | 3 |
| Output Contacts: | 1 C/O contact |
| Measuring range max.: | 690 V |
| Standard measuring range: | AC 380 – 690 V |
