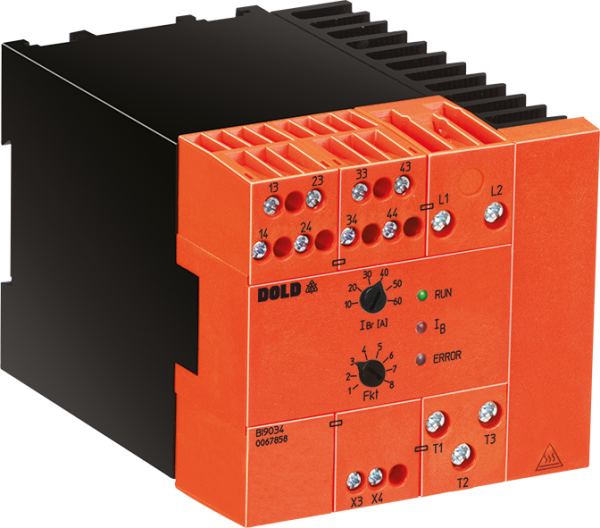

DOLD 0062127: BI9034 60A AC50/60HZ 400V 2-11S Motor brake relay
The BI 9034 electronic braking relay enables the wear-free braking of asynchronous motors. The braking relay is used for drives that must be reliably braked for safety and functional reasons. An integrated standstill detection switches off the braking current after the motor has come to a standstill.
| Attribute | Value |
|---|---|
| Width: | 90 mm |
| Type: | BI 9034 |
| Braking current adjustable up to max.: | 60 A |
| Braking time adjustable up to max.: | 31 s |
| Signalling output: | Yes |
| Temperature monitoring: | Yes |
| Automatic standstill monitoring: | Yes |
