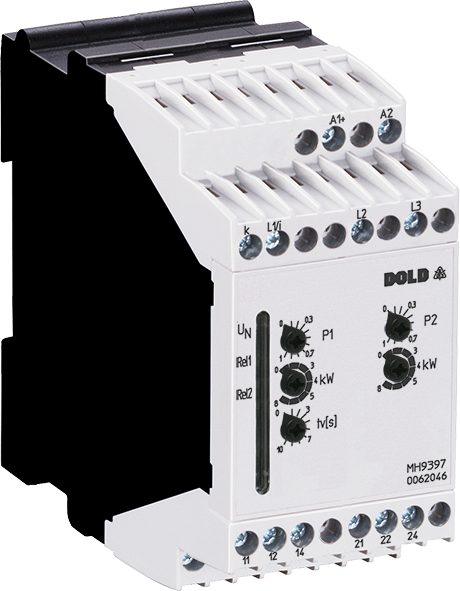

DOLD 0062046: MH9397.12/010 3AC24-400V AC12A Motor Load Monitor
The Load monitor MK9397 and MH9397 of the varimeter family monitor reliably the load of motors as well as the function of 3 phase electrical users. If the measured value falls under or goes over the adjusted settings the corresponding output relay is energised. To avoid unnecessary tripping a response delay tv can be adjusted between 0 and 10 s. LEDs show the status of the output relays.
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Enclosure design: | Switch cabinet |
| Type: | MH 9397 |
| 1- / 3-phase: | 3 |
| Auxiliary voltage: | AC |
| Output Contacts: | 2 x 1 C/O contacts |
| Measuring range max.: | 12 A (8 kW) |
| Operate Delay: | Yes |
