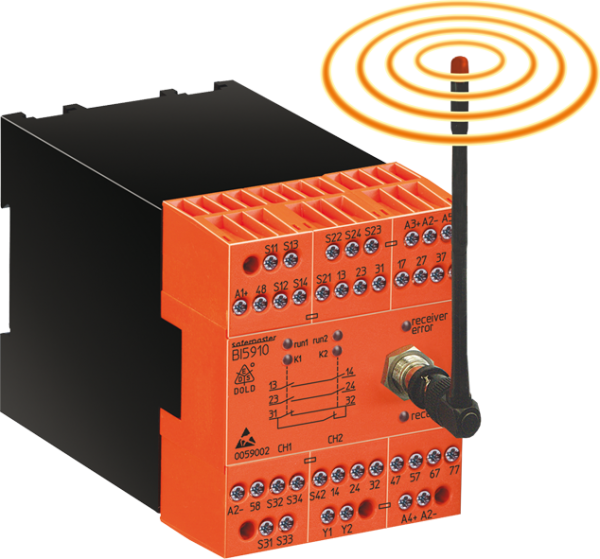

DOLD 0061749: BI5910.22/00MF9007 DC24V Radio controlled safety module
The Wireless E-Stop-System includes a very compact and ergonomic remote control RE 5910 and a safety module with radio control BI 5910. The remote control provides personal protection when entering dangerous areas and allows besides the emergency stop function also control functions with the integrated push buttons and switches. The safety outputs of the BI 5910 guarantee safe disconnection. For control functions it includes 7 semiconductor outputs.
| Attribute | Value |
|---|---|
| Width: | 67,5 mm |
| Type: | BI 5910 |
| Cat. / PL Acc. To EN ISO 13849-1: | 4/e |
| NC Contacts: | 1 |
| Safe Output Contacts, Redundant NO Contacts: | 3 |
| Application: | Emergency stop, Light barrier, Safety gate, Start, Wireless |
| Feedback for external monitoring: | Yes |
| Solid State Outputs Not Safe (radio): | 6 |
