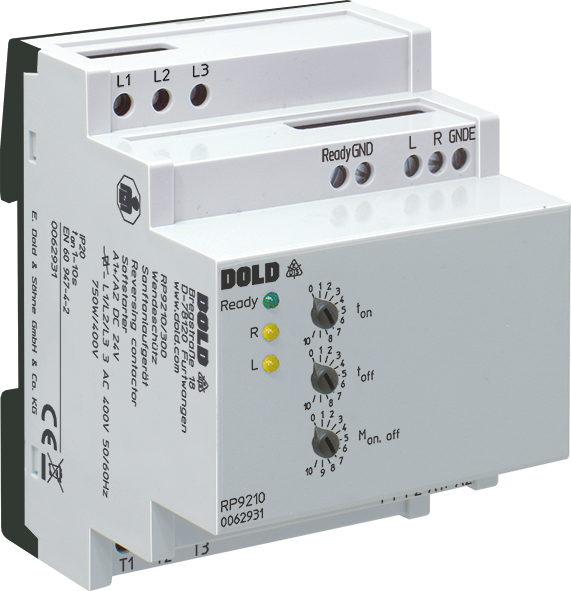

DOLD 0061675: RP9210/200 3AC400V50/60HZ 1-10S Softstart / Softstop with reverse function
The softstart/softstop devices with reversing function are mainly used for soft reversing of motors. The softart/sofstop function reduces the innertia when reversing, giving less stress to the mechanical components. Less wearing and lower maintenance cost are the result. The parameters for ramp up time and ramp down time as well as start and stop innertia are set via potentiometers. A thermistor or thermal switch can be connected to monitor the motor temperature. Non-wearing reversing by hybrid-technology.
| Attribute | Value |
|---|---|
| Type: | RP 9210/300 |
| Signalling output: | Yes |
| Auxiliary voltage required: | Yes |
| Widths: | 72 mm |
| Load voltage up to: | 3AC 400 V |
| For three-phase motors, 400 V up to: | 0,75 kW |
| Extra Functions: | Temperature monitoring |
