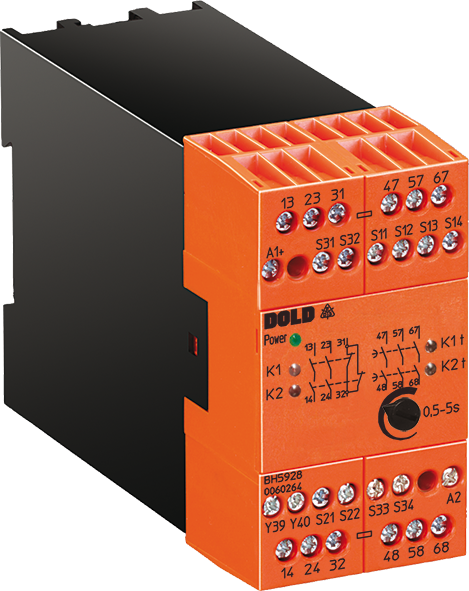

DOLD 0061227: BH5928.91/61 AC/DC24V 30-300S Emergency stop module with time delay
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Type: | BH 5928 |
| Cat. / PL Acc. To EN ISO 13849-1: | 4/e |
| SIL Acc. To IEC/EN 62061: | 3 |
| Output contacts max.: | 3 NO contacts, 3 NO contacts delayed |
| Nominal voltage: | DC, AC/DC |
| Approvals: | UL |
| Thermal current Ith max.: | 5 A |
| 1- / 2-channel: | 1, 2 |
| Connection: | Pluggable screw terminals |
| Cross Fault Detection: | Yes |
| Suited as safety gate monitor: | Yes |
