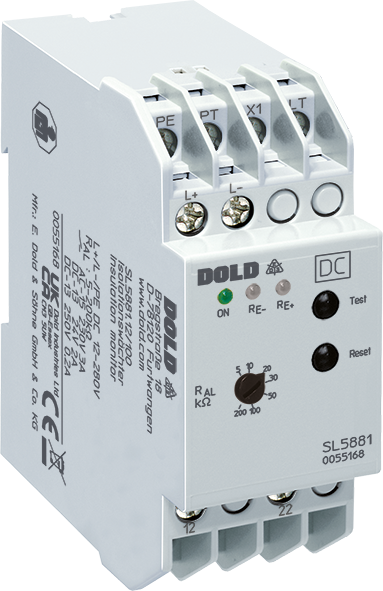

DOLD 0059623: SL5881.12/300 DC12-280V 0,5-20S Insulation monitor
The insulation monitor IL 5881 of the series VARIMETER IMD monitors the insulation resistance of non-earthed DC systems (IT-systems) with nominal voltage up to DC 12 … 280 V. The supply voltage (auxiliary voltage) is taken from the monitored system. The device has LEDs to indicate the operating status. The response value can be set in a user-friendly way on the front of the device via a potentiometer.
| Attribute | Value |
|---|---|
| Width: | 35 mm |
| Enclosure design: | Switch cabinet |
| Type: | SL 5881 |
| Auxiliary voltage: | Without, AC, DC |
| Nominal voltage IT system: | DC 12 – 280, DC 24 – 500 V |
| Response Value: | 5 – 500 kΩ |
| IMD Type: | DC |
| Response Value Type: | Adjustable |
| Earth Fault Indicator: | Yes |
