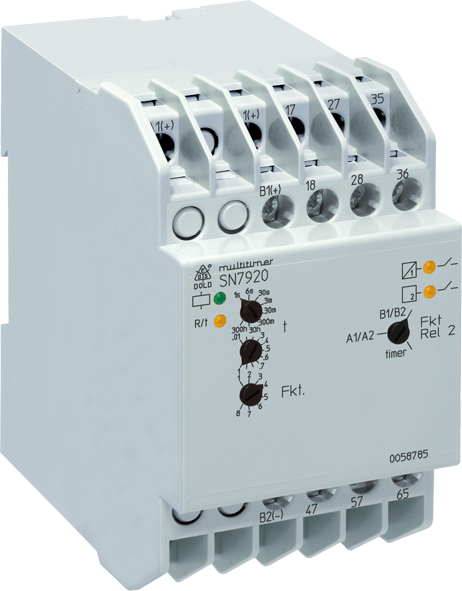

DOLD 0059054: SN7920.54/001 ACDC24-230V ,05S-300H Multifunction relay
Time dependent controls for industrial and railway applications.
| Attribute | Value |
|---|---|
| Width: | 52,5 mm |
| Enclosure design: | Switch cabinet |
| Type: | SN 7920 |
| Output Contacts: | 2 NC contacts, 4 NO contacts |
| Time function(s): | On-delay, Off-delay, with control signal, On- and Off-delay, Flasher relay, Fleeting on make, Fleeting on break, Impulsgeber, Pulse extender |
| Nominal voltage: | AC/DC |
| Time range: | 0,05 s – 300 h |
