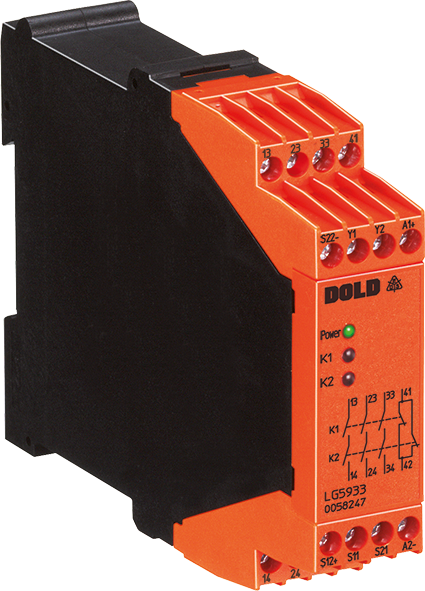

DOLD 0058650: LG5933.48PC DC24V Two-hand safety relay
The LG 5933 enables and disables a safety circuit in a safe way. It is used to protect people and machines in applications with 2-hand buttons on presses for metal products as well as for other production machinery with dangerous closing movements.
| Attribute | Value |
|---|---|
| Width: | 22,5 mm |
| Type: | LG 5933 |
| Cat. / PL Acc. To EN ISO 13849-1: | 4/e |
| SIL Acc. To IEC/EN 62061: | 3 |
| Output contacts max.: | 1 NC contact, 3 NO contacts |
| Nominal voltage: | AC, DC |
| Thermal current Ith max.: | 5 A |
| Connection: | Screw terminals, Pluggable screw terminals, Pluggable cage clamp terminals |
| Safety integrity level according to EN ISO 13851: | lll C |
