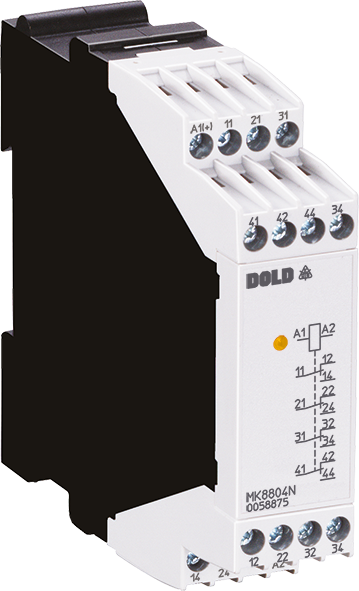

DOLD 0057972: MK8804N.14/001 AC/DC220-240V Interface relay
The MK 8804N coupling relay is used for contact multiplication and is suitable as a link between the control and power levels.
| Attribute | Value |
|---|---|
| Width: | 22,5 mm |
| Enclosure design: | Switch cabinet |
| Type: | MK 8804N |
| Output contacts max.: | 4 C/O contacts |
| Nominal voltage: | AC, AC/DC |
| Thermal current Ith max.: | 5 A |
| Suppressor Circuit On the Coil Input: | Yes |
| Initiator triggering: | Yes |
