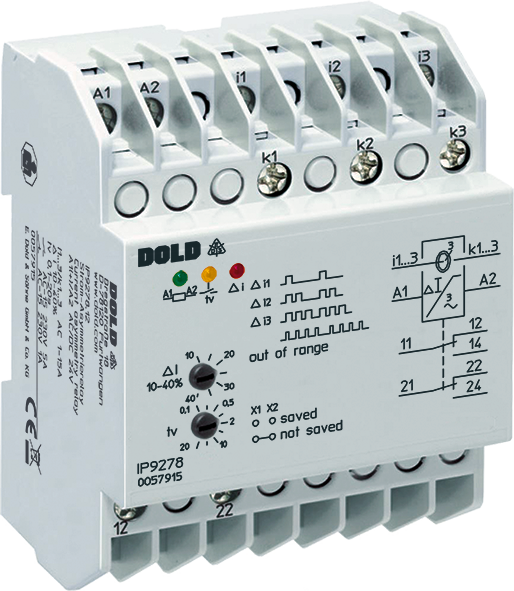

DOLD 0057915: IP9278.12 AC/DC24V AC1-15A 0,1-20S Current Asymmetry Relay
The current asymmetry relay IP 9278 or SP 9278CT monitors the current symmetry of the 3 phases in three-phase networks. With the integrated current transformers, currents of up to 100 A can be measured. In the event of asymmetry, the changeover relay is switched after the adjustable delay time tv has elapsed. Optionally, the error can be stored.
| Attribute | Value |
|---|---|
| Width: | 70 mm |
| Enclosure design: | Distribution board |
| Type: | IP 9278 |
| 1- / 3-phase: | 3 |
| Measuring range: | AC 1 – 15 A |
| Auxiliary voltage: | AC, AC/DC |
| Output Contacts: | 2 C/O contacts |
| Operate Delay: | Yes |
