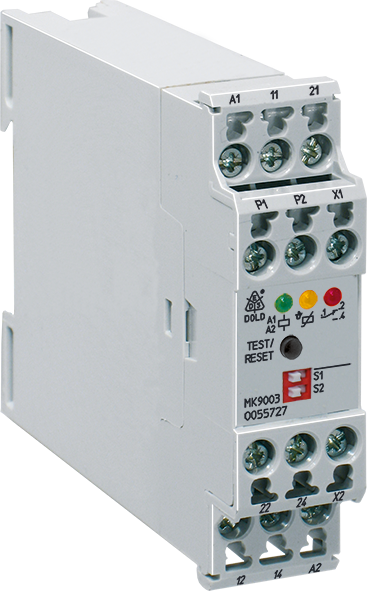

DOLD 0055998: MK9003.12/00100 ATEX AC400V ATEX Thermistor Motor Protection Relay
Temperature monitoring of explosion protected Motors by „extended safety“ EX e EN 60079-7, „pressure proof enclosure“ EX d EN 60079-1 or „overpressure enclosure“ Ex px in gas containing atmosphere as well as „protection by enclosures“ Ex t EN 60079-31 in dust containing atmosphere. The thermistor Motor protection relay protects Standard and Explosion proof Motor against overheating due to overload accoding to EN 60079-14 and EN 60079-0.
| Attribute | Value |
|---|---|
| Width: | 22,5 mm |
| Enclosure design: | Switch cabinet |
| Type: | MK 9003 ATEX |
| Auxiliary voltage: | AC, DC |
| Output Contacts: | 2 C/O contacts |
| Measuring range max.: | > 3.1 kΩ |
| Classification: | Thermistor-Motorschutz |
