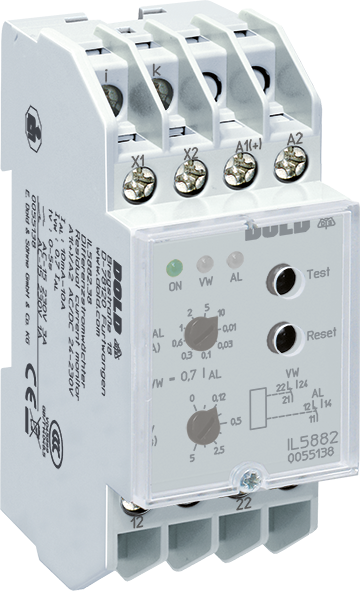

DOLD 0055138: IL5882.38 AC/DC24-230V 10A tv=5S Residual current monitor, Type A
The residual current monitors IL/SL 5882 of the VARIMETER RCM series are suitable for detecting insulation faults in earthed systems as well as for monitoring and preventive maintenance of electrical systems. Insulation deterioration can be detected at an early stage and indicated to the operator of the installation without immediately causing an interruption of operation.
| Attribute | Value |
|---|---|
| Width: | 35 mm |
| Enclosure design: | Distribution board |
| Type: | IL 5882 |
| Operate Delay: | Yes |
| Adjustable measuring ranges: | 0,01 – 10, 0,01 – 30 A |
| Classification: | Type A (AC, DC pulsating) |
| Type of voltage: | AC, DC pulsating |
| Broken Conductor Detection: | Yes |
| Clear Key: | Yes |
| Test Key: | Yes |
| Relay Contact / Output: | Yes |
