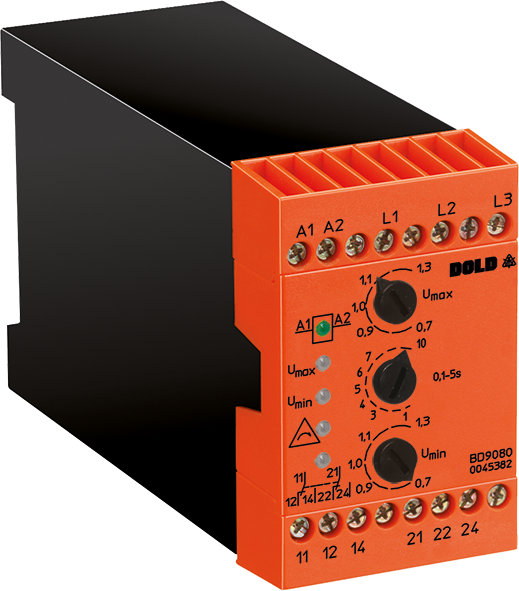

DOLD 0052954: BD9080.12 3AC400V UH AC42V 0,1-5s Phase monitor
The Phase monitor BD 9080 of the VARIMETER PRO series monitors over and undervoltage, asymmetry, power failure as well as wrong phase sequence at three-phase networks. Early detection of impending failtures and preventive maintenance prevent costly damage and as a user you benefit from the operational safety and high availability of your system.
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Enclosure design: | Switch cabinet |
| Type: | BD 9080 |
| 1- / 3-phase: | 3 |
| Auxiliary voltage: | AC, AC/DC |
| Output Contacts: | 2 C/O contacts |
| Measuring range max.: | 750 V |
| Standard measuring range: | 3 AC 400 V |
| Operate Delay: | Yes |
