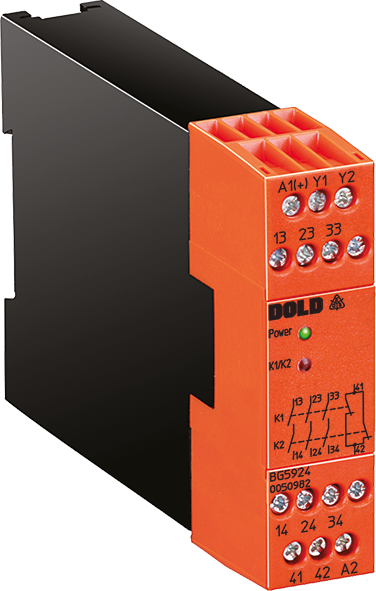

DOLD 0051973: BG5924.48/61 AC/DC24V Emergency stop module
The emergency stop modules BG 5924 and IP 5924 can be used to protect people and machines by interrupting a safety circuit in a safe way.
| Attribute | Value |
|---|---|
| Width: | 22,5 mm |
| Type: | BG 5924 |
| Cat. / PL Acc. To EN ISO 13849-1: | 4/e |
| SIL Acc. To IEC/EN 62061: | 3 |
| Output contacts max.: | 4 NO contacts |
| Nominal voltage: | AC, DC, AC/DC |
| Approvals: | UL-Recognized |
| Thermal current Ith max.: | 5 A |
| 1- / 2-channel: | 1, 2 |
| Connection: | Pluggable screw terminals |
