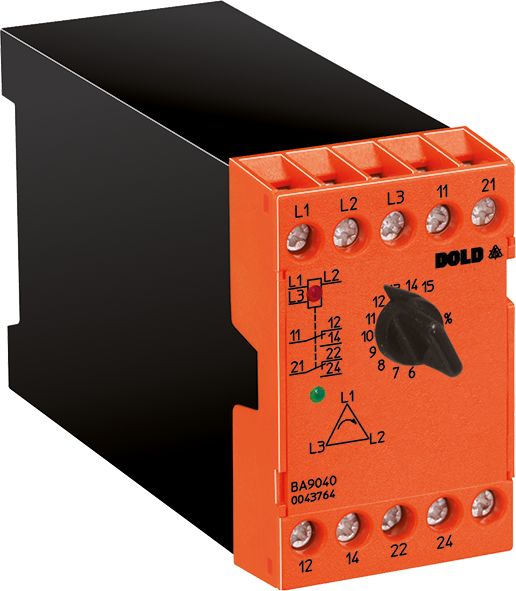

DOLD 0049615: BA9040.12/001 3AC50/60HZ 660V Asymmetry Relay
The asymmetry relay BA 9040 of the VARIMETER series monitors asymmetry, reverse voltages, phase failure and incorrect phase sequence in three-phase networks. The early detection of impending failures and preventive maintenance prevent costly damage and as a user you benefit from the operational reliability and high availability of your system.
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Enclosure design: | Switch cabinet |
| Type: | BA 9040 |
| 1- / 3-phase: | 3 |
| Output Contacts: | 2 C/O contacts |
| Measuring range max.: | 3 AC 690 V |
| Standard measuring range: | 3 AC 400 V |
| Operate Delay: | Yes |
