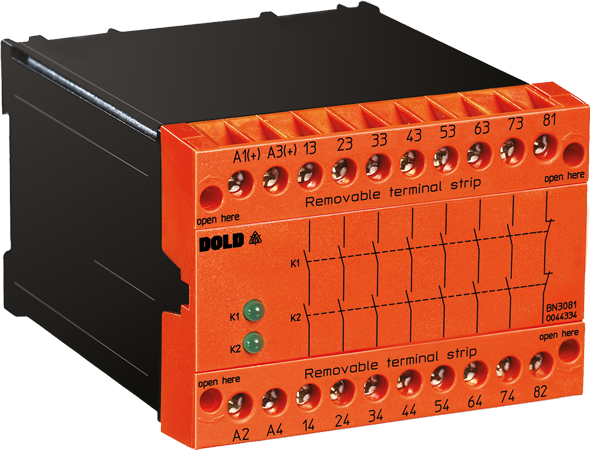

DOLD 0048700: BN3081.63/61 AC/DC24V Extension module
If more safety cicuits have to be switched, than a safety module provides, the extension module BN 3081 is used. It offers safe and reliable contact multiplication and re-enforcment for safety modules with monitoring of the feedback circuit. Safe semiconductor outputs can be extended by relay output contacts. The extension module has forcibly guided contacts and can be delivered with different contact arrangements.
| Attribute | Value |
|---|---|
| Width: | 100 mm |
| Type: | BN 3081 |
| Cat. / PL Acc. To EN ISO 13849-1: | 4/e |
| SIL Acc. To IEC/EN 62061: | 3 |
| Output contacts max.: | 1 NC contact, 7 NO contacts |
| Nominal voltage: | AC, DC, AC/DC |
| Approvals: | UL-Recognized |
| Thermal current Ith max.: | 10 A |
| 1- / 2-channel: | 1, 2 |
| Connection: | Pluggable screw terminals |
