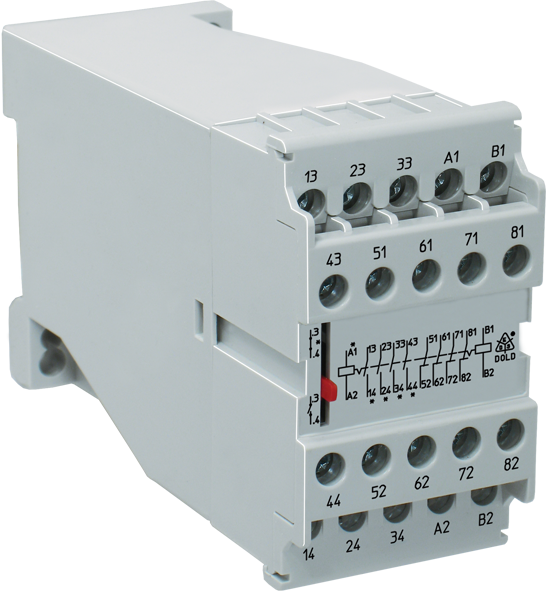

DOLD 0047988: AD8851.14 AC50/60HZ 48V Latching relay
The bistable function of the AD 8851 latching relay is realised by two hinged armature magnet systems that interlock with each other. The relay has a solid torsion-resistant mounting frame that supports both magnet systems and the common contact block, allowing the relay to withstand even the toughest mechanical loads. On all types, a switch lever located on the front panel allows manual magnet system adjustment and indicates the magnet or contact position.
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Enclosure design: | Switch cabinet |
| Type: | AD 8851 |
| Output contacts max.: | 4 NO contacts, 4 NC contacts |
| Nominal voltage: | AC, DC |
| Thermal current Ith max.: | 8 A |
