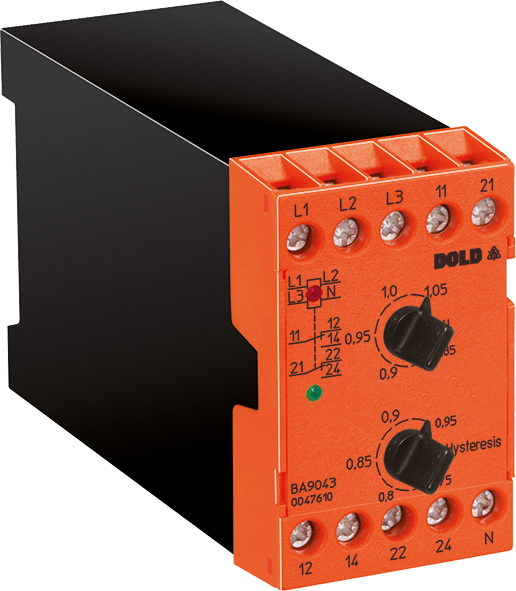

DOLD 0045681: BA9043/001 3AC50-400HZ 525V Undervoltage relay
The undervoltage relay BA 9043 of the VARIMETER series monitor 3-phase AC networks. The measurement is very simple and without extensive wiring as there is no auxiliary power supply necessary. The adjustment of the setting values is user friendly and done on 2 rotary switches on the front of the device.
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Enclosure design: | Switch cabinet |
| Type: | BA 9043 |
| 1- / 3-phase: | 3 |
| Auxiliary voltage: | Without |
| Output Contacts: | 2 C/O contacts |
| Operate Delay: | Yes |
| Nominal voltage max.: | 3/N AC 690 / 400 V |
