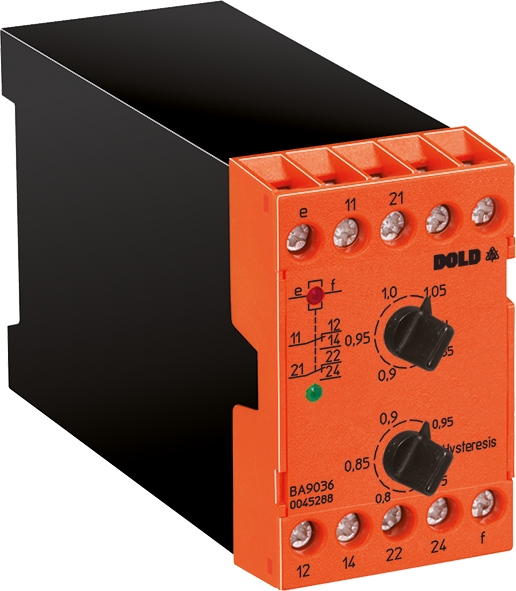

DOLD 0045375: BA9036/001 AC50HZ 400V Voltage Relay
The BA 9036 voltage relay from the VARIMETER series monitors singlephase direct or alternating current networks. The device is set easily and user-friendly via rotary switches on the front of the device. Early detection and preventive maintenance help to avoid electrical system failures and thus guarantee greater operational and system safety.
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Enclosure design: | Switch cabinet |
| Type: | BA 9036 |
| 1- / 3-phase: | 1 |
| Auxiliary voltage: | Without |
| Output Contacts: | 2 C/O contacts |
| Operate Delay: | Yes |
| Nominal voltage max.: | AC 400 V |
