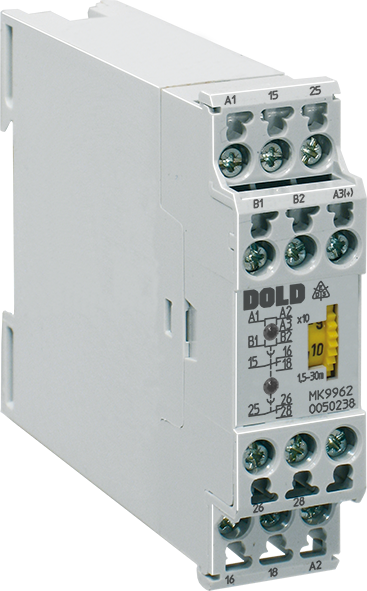

DOLD 0044941: MK9962 AC/DC24V+AC220-240V 0,15-3H Timer, Off-delay
The MK 9962 of the MINITIMER series is a release-delayed time relay with control signal. When the control signal is activated, the relay picks up and the output contact is closed. When the control signal is removed, the time lapse begins. After the time has elapsed, the relay switches back to the rest position. The delay time can be set easily and over a wide adjustment range via a stepless rotary switch.
| Attribute | Value |
|---|---|
| Width: | 22,5 mm |
| Enclosure design: | Switch cabinet |
| Type: | MK 9962 |
| Output Contacts: | 2 C/O contacts |
| Time function(s): | Off-delay, with control signal |
| Nominal voltage: | AC, AC/DC |
| Time range: | 0,05 s – 100 h |
